Name: SS304L 8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 8-5/8 »
Price: 200.00 USD
Availability: InStock

Maison > PRODUITS > filtre pour puits de l'eau >

SS304L 8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells

Sand Control Water Well Screen

SS304L Water Well Screen

8-5/8" Water Well Screen

Lieu d'origine:

Hengshui, Hebei, Chine

Nom de marque:

Heng Yuan

Certification:

ISO9000

Numéro de modèle:

8-5/8 »

Contactez-nous

Demandez une citation

Détails de produit

Nom:

Filtre pour puits de l'eau

Matériel:

Acier inoxydable 304L

Diamètre:

219 mm

Longueur:

5800mm

Taille de la fente:

1.0 mm

Fil d'enveloppe:

3.0×4.6mm

Rameau de support:

ø4.0mm

No. de tige:

48NOS

Connexion de fin:

Appareil à filetage API STC

Poids:

110 kg par pièce

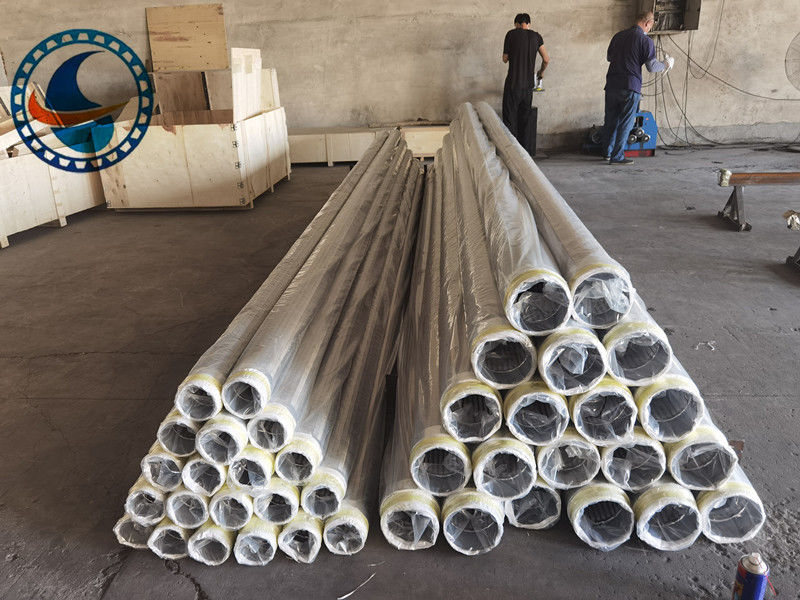

Paquet:

Films en plastique

Utiliser:

Dans des puits d'eau pour le contrôle de sable

Produits connexes

Vidéo

SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation

Obtenez le meilleur prix

Vidéo

Stainless Steel 304L Rod Based Continuous Slot Wedge Wire Screen

Obtenez le meilleur prix

Vidéo

SS304 Vee Wire Water Well Screen Non Clogging Long Lasting Performance

Obtenez le meilleur prix

Vidéo

Écran de puits d'eau galvanisé à faible teneur en carbone Excellente résistance à la pression Fournisseurs

Obtenez le meilleur prix

Contactez-nous

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact maintenant

Description de produit

8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells

Commonly referred to as continuous slot or wire wrap screen, continuous slot water well screen was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands in the North Central United States.

These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production.

Continuous wire wrap screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.

Water Well Screen Regular Specifications:

Name:Continuous Slot Rod Based Water Well Screen,Oil Well Sand Screen,Water Well Screen, Wedge wire screen,Screen tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:23.5mm,2.23.5mm,34.6mm,35mm,36mm,36.5mm,3.26mm,47mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire Vee-shaped wire(mm)	Support rod Round wire(mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.03.5(Widthheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.03.5(Widthheight)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.03.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.06.0(Widthheight)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.23.5(Widthheight)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.04.6(Widthheight)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.06.0(Widthheight)	ø5.0MM×48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.23.5(Widthheight)	ø4.0MM×55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.04.6(Widthheight)	ø4.8MM×55
10-3/4	273.1	1.0	5.8	＞100	48	3.26.0(Widthheight)	ø5.0MM×55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.05.0(Widthheight)	ø4.0MM×56
14	355.6	1.0	2.9	＞80	37.8	3.05.5(Widthheight)	ø4.0MM×59
16	426	1.0	2.9	＞80	37.5	3.05.5(Widthheight)	ø4.0MM×64

Special specification can be made according to your need !

Water Well Screen Use:

Water Well,

Food &Beverage Screens,

Pharmaceutical & Biological industries,

Refining & Petrochemical,

Water Treatment & Liquid / Solids Separation,

Mineral & Aggregate Processing,

Pulp & Paper Screens.

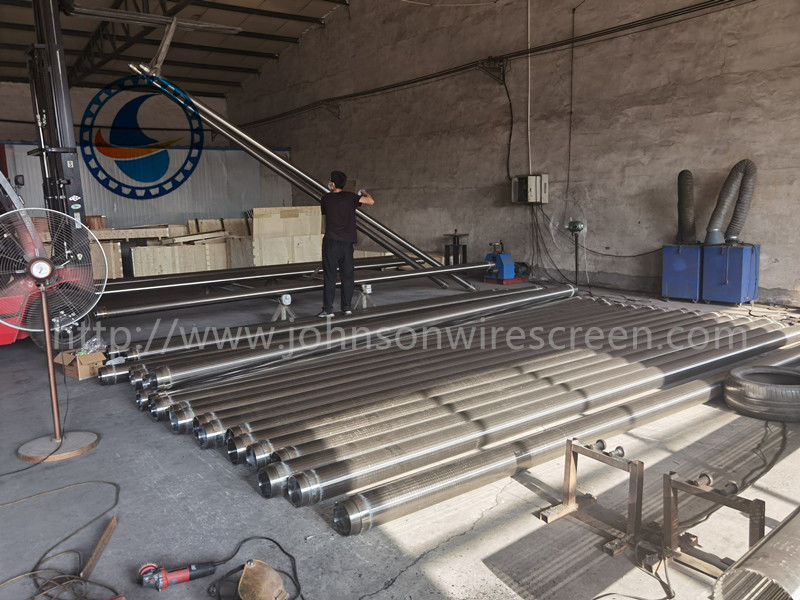

SS304L 8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells 0
