Name: Continuous Slot Wedge Wire Screen Cylinders For Oil Well
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070201
Price: 110.00 USD
Availability: InStock

Maison > PRODUITS > Johnson Wedge Wire Screens >

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Oil Well Wedge Screen Cylinders

Continuous Slot Wedge Wire Screen

Oil Well wedge screen filter

Lieu d'origine:

Ville de Hengshui, Hebe Provincei, Chine

Nom de marque:

HengYuan

Certification:

ISO,CO,FORM E,CIQ, etc

Numéro de modèle:

HY070201

Contactez-nous

Demandez une citation

Détails de produit

Nom:

Cylindres d'écran à fil en V à fente continue

Matériel:

Acier inoxydable 316L

Diamètre:

75mm

Longueur:

5500mm

Réservoir:

0.3 mm

Télécommunications:

2.28*3,56 mm fil de vache

Rameau de support:

Fil de caoutchouc de 3*4,5 mm

Finition:

Anneaux soudés

Technique:

Soudure de point

Caractéristiques:

non-obstruer

Application du projet:

filteration

Paquet:

Wooden Box

Type d'entreprise:

Fabricant

Type de filtre:

De l'extérieur à l'intérieur

Produits connexes

Vidéo

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Obtenez le meilleur prix

Vidéo

OD 2-3/8" Slot 100μm SS304 Johnson Type Wedge Wire Screen Filter

Obtenez le meilleur prix

Vidéo

Stainless Steel 316L 0.5mm Slot Wedge Wire Oil Screen Pipe 2-7/8" OD

Obtenez le meilleur prix

Vidéo

Full Welded Wedge Wire Wound Screen Of Stainless Steel

Obtenez le meilleur prix

Contactez-nous

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact maintenant

Description de produit

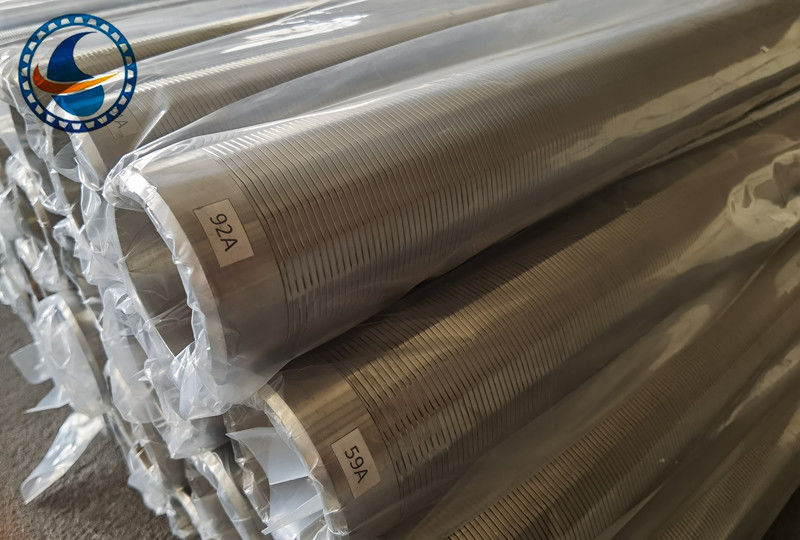

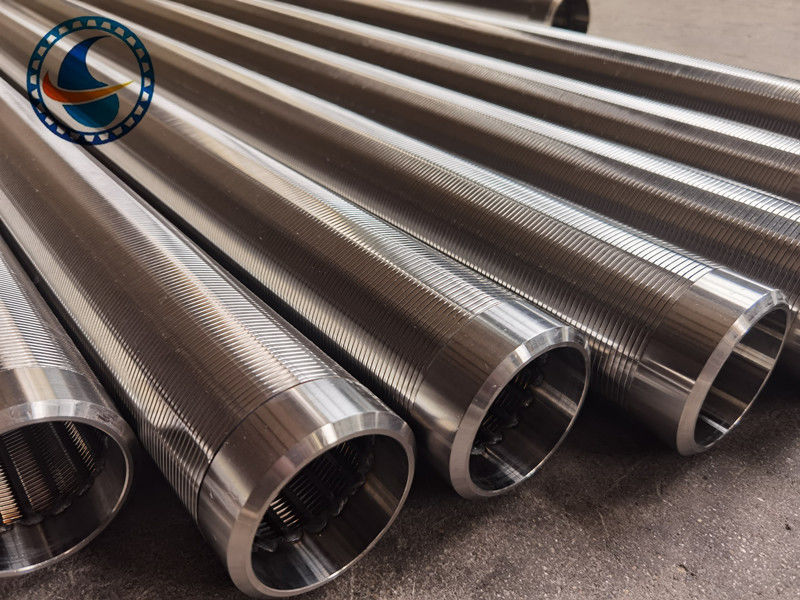

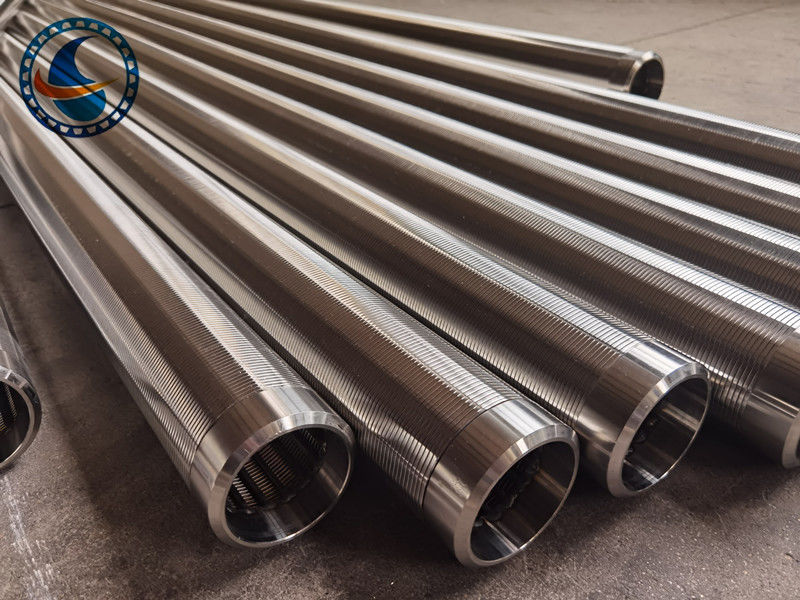

Continuous Slot Wedge Wire Screen Cylinders Used For Oil Well

Continuous Slot wedge wire screen cylinder, also be named wedge wire screen, wedge wire screen pipe, Johnson screen, water well screen, water wire screen, wound screen, screen filter.

We design, manufacture and market a wide variety of wedge wire screens for industrial applications. The basic constructions are cylindrical screens (tubes) made of metal (usually stainless steel) or looped panels made of metal (usually stainless steel). The screens are used for various applications including flow distribution and carbon retention. They are often used with our other products like underdrains and intake screens.

Please contact us to discuss your specific interests or requirements.

Continuous Slot Wedge Wire Screen Cylinders Size information:

Material : stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 25-1300 mm ,can make as customers request.

Slot: 0.02-100mm

Length :10-4000mm

End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Name:Wedge Wire Screen Cylinders,Johnson screen,Water wire screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Rotary filter drum.

Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.

Diameter: From 25-1300mm

Slot: From 0.025-100mm

Length: From 100-6000mm

Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.

Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,

Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Continuous Slot Wedge Wire Screen Cylinders Featuring:

Screen longevity unaffected by processing coarse & acidic minerals
Withstands most corrosive & abrasive applications on the market
High grade stainless steel wedge wire screen filters on demand
Grade 430 stainless steel construction for abrasive applications
Grades 304 & 316 stainless steel construction for corrosive applications

Continuous Slot Wedge Wire Screen Cylinders For Oil Well 0
